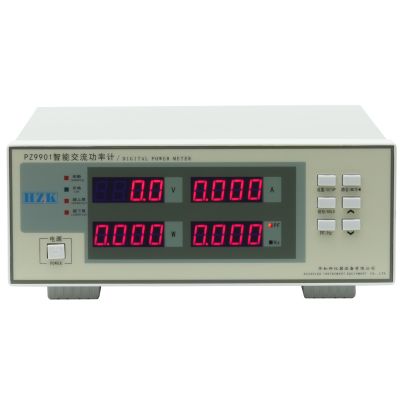

The four-window 5-digit LED simultaneously displays voltage, current, power, and power factor/frequency

It adopts a 32-bit MCU design, ensuring more accurate measurement, faster speed and greater stability

Standard equipped with RS232/RS485 communication ports and high-resolution software

Measurable AC signal (AC), DC signal (DC), AC + DC signal (RMS)

The adoption of four-wire resistance current detection effectively ensures the stability of measurement

T-RMS true root mean square measurement, peak-to-wave ratio measurement

Standard equipped with RS485 and RS232 communication and analysis software

Measurement range: 3.0-600.0V, 0.010A-20.00A

Communication protocols can be provided, and customers can carry out secondary development

Analysis of the distortion degree and absolute value of the 2nd to 50th harmonics in total harmonics

Digital display, intuitive reading, adopts high-speed AD converter and 32-bit MCU operation

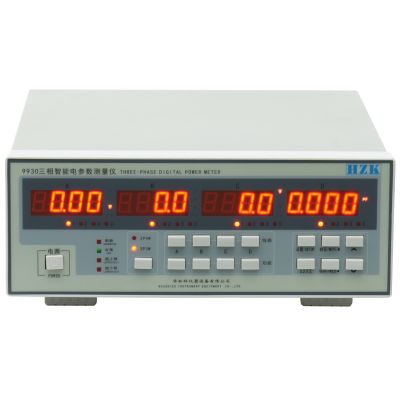

It is applicable to the measurement of electrical parameters for single-phase, three-phase three-wire/three-phase four-wire equipment

The voltage and current ranges are automatically switched to improve measurement accuracy

The measurement accuracy is not affected by the waveform, with high reliability and a long service life

Batch detection improves efficiency

The upper and lower limit alarm parameters can be set arbitrarily, and it has sound and light alarm functions

A high-current transformer can be externally connected to expand the measurement range

Set the current multiplier and directly read the current value

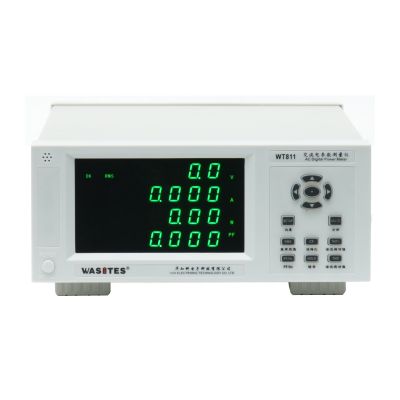

The four Windows simultaneously display the voltage/current/power/power factor of single-phase and three-phase. The measurement is stable and fast

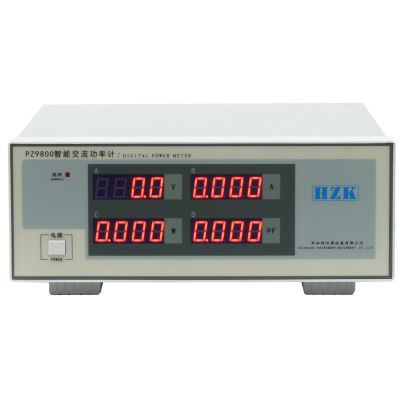

The four Windows simultaneously display voltage, current, power and power factor, ensuring stable measurement

Rapid measurement of true root mean square values for T-RMS

The voltage and current ranges are automatically switched to improve measurement accuracy

The measurement accuracy is not affected by the waveform, with high reliability and a long service life

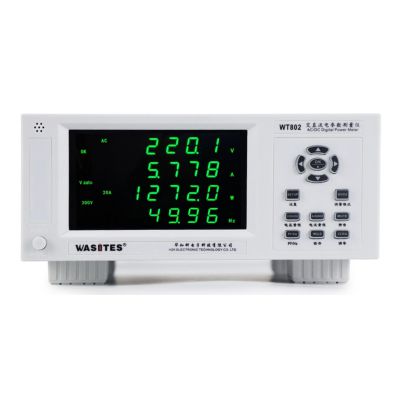

The four Windows simultaneously display voltage, current, power, power factor/frequency, ensuring stable and rapid measurement

The true root mean square value measures T-RMS

The voltage and current ranges are automatically switched to improve measurement accuracy

The measurement accuracy is not affected by the waveform, with high reliability and a long service life

Data lock and alarm mute function
